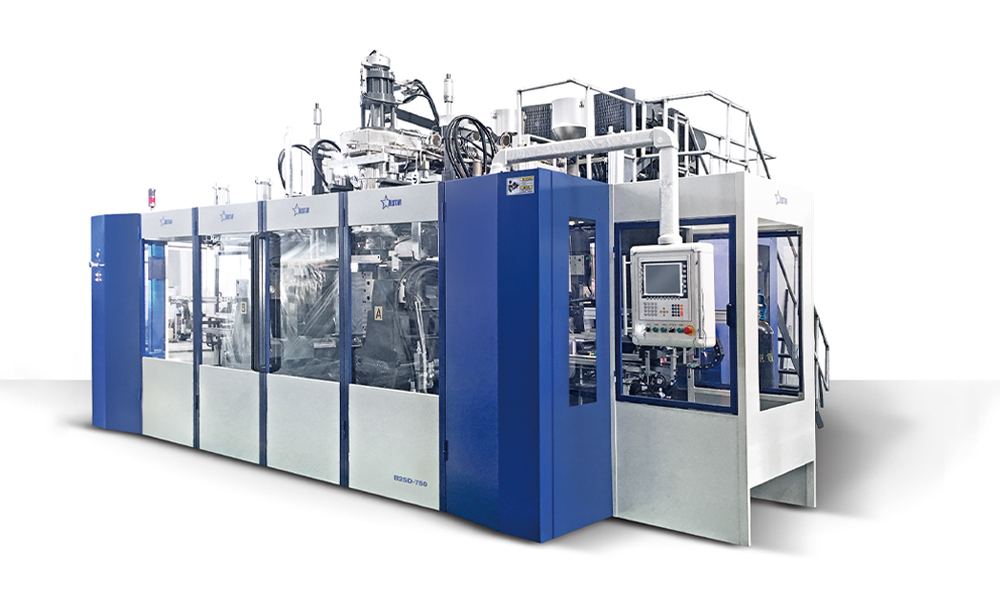

30L ReCo 3-layer Stackable Barrel Blow Molding Machine

10L, 20L, 30L, Chemical, Stacking barrel, Blow moulding machine, Extrusion blow moulding machine, Blow molder

30L ReCo 3-Layer Stackable Barrel Blow Molding Machine specifically developed for chemical and hazardous material packaging, this machine delivers superior strength, safety, and space efficiency—ideal for transport and storage applications.
With its advanced ReCo 3-layer co-extrusion technology, this blow molding machine ensures that each barrel features a robust internal structure with a high-barrier core layer. This structure significantly enhances chemical resistance, impact durability, and long-term material stability, making it suitable for aggressive industrial liquids and chemicals.
The machine is equipped with 1 cavity and operates with double stations, ensuring continuous and balanced production. It supports in-mould labeling (IML), allowing seamless integration of product branding, safety instructions, and traceability features directly onto the barrel surface—eliminating the need for secondary labeling operations and enhancing production efficiency.

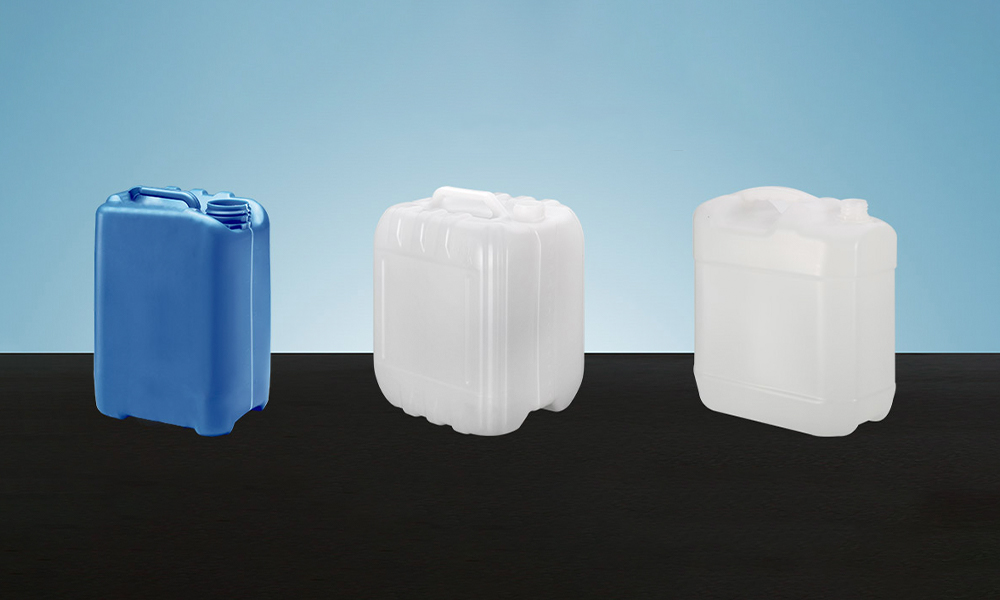

The stackable design of the barrel enhances warehouse and shipping efficiency by maximizing space usage. Whether for chemical distribution, industrial storage, or export packaging, the barrel produced by this machine offers structural integrity, stackability, and excellent resistance to permeation and leakage.

Get A Quote

Technical Parameters

Chemical Stacking Barrel Blow Moulding Machine
Bestar 30Liters reco 3-layer stackable barrel blow molding machine . Chemical stacking barrels can be customized to meet your needs. Equipment for series blow molding machines comprises barrel blow molding machines made of plastic, barrel blow molding machines made of chemicals, and stackable bucket blow molders.
1 cavities,double stations. cycle time 60 seconds with in-mould labeling . output 120 pcs/hour, Bottle net weight 1300±10g.

Technical specifications

Article	30Liters stacking barrel
Cavities Per Mould	1cavity
layers	3layer
Double/Single Stations	Double Stations
Net Weight	1300±10g
Cycle Time	60 seconds with in-mould labeling
Article Output	120 pcs/hour
Machine Type	B25D-750

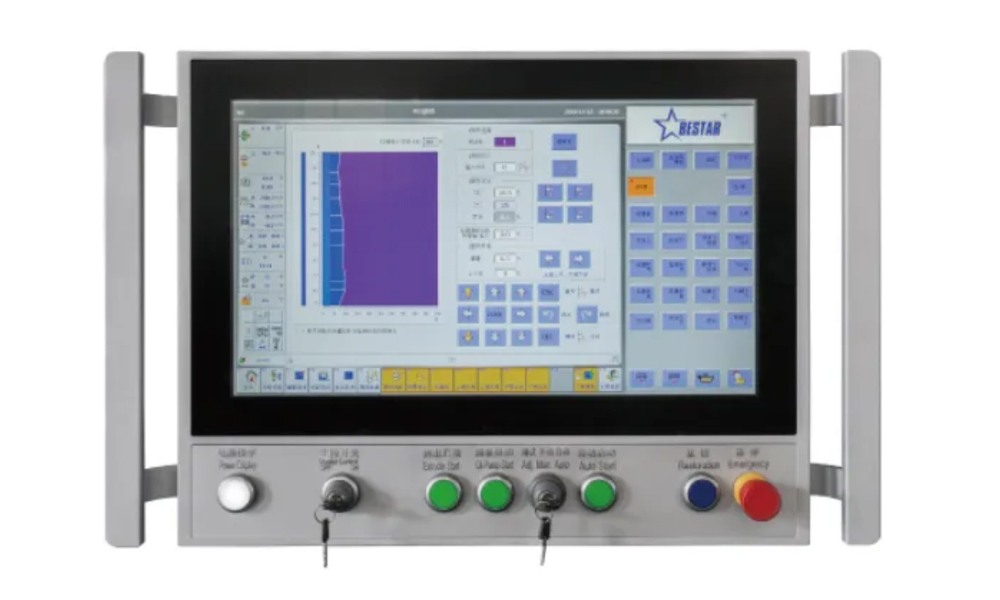

CONTROL SYSTEM

Austria B&R newest control system with an Intel Atom 1.46G.
Low-power 64-bit processor, integrated control, a direct display of the machine's operating characteristics, and an adjustable panel. Direct displays of the operating screen, automatic alert, and automatic problem diagnostics.
18.5-inch touchscreen display featuring an interface that is easier to use. Integrated 100-point(max 500points) axial wall thickness control to precisely regulate the product's wall thickness and reduce the cost for raw materials.
A programmable timer to regulate the heating and lower the temperature for an overnight shutdown.
Data reading and writing are made easier with an external USB.
Ethernet connection Remote diagnostics, remote service access, and accurate error parameters.
Adaptable upgrade choices.

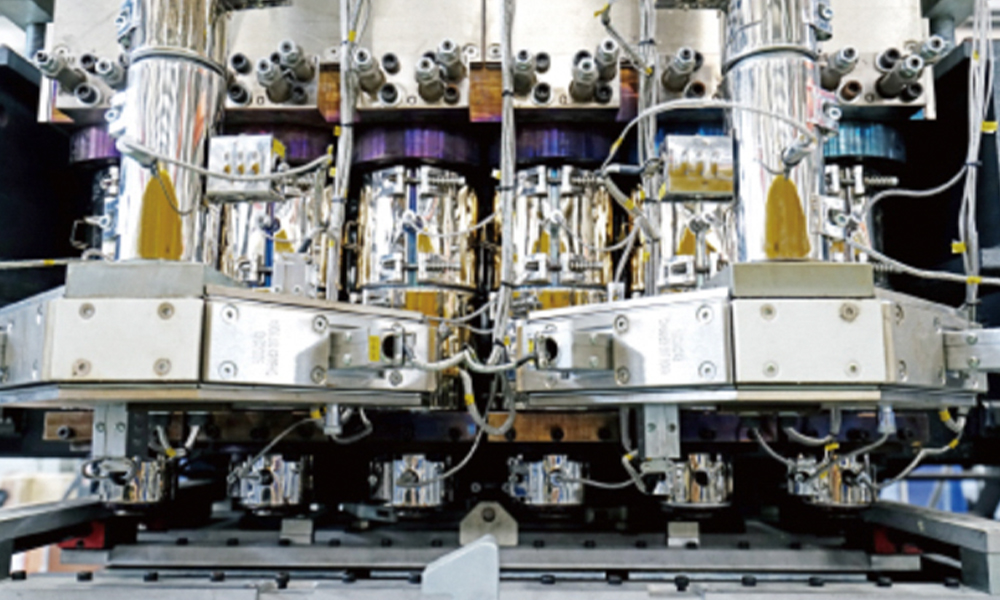

Die head

Cavities ReCo 3-layer Extrusion Head.
Precise, accurate and streamlined die head design.Without blind angles and with faster color change.
Lower back pressure .Longer service life of extruder unit and gear box.
Multi-cavity flow channel with simple flow control.
Multi-layer co-extrusion head with spiral mandrel or heart curve.
Die head single layer with offset spider.
View stripes based on your request.
