100ML Deco 2-layer Pesticide Bottle Blow Molding machine

100ml, 250ml, 500ml, 1L, 3layers, 4layers, 6layers, Agrochemical, Pesticide bottle, COEX, Co-extrusion, Barrier layer bottle, Blow moulding machine, Extrusion blow moulding machine, Blow molder

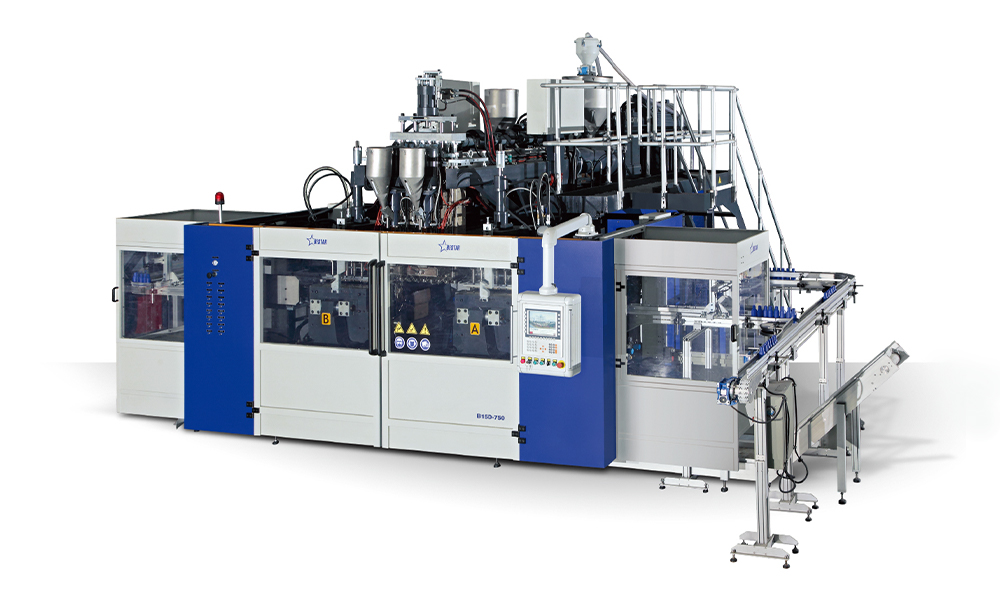

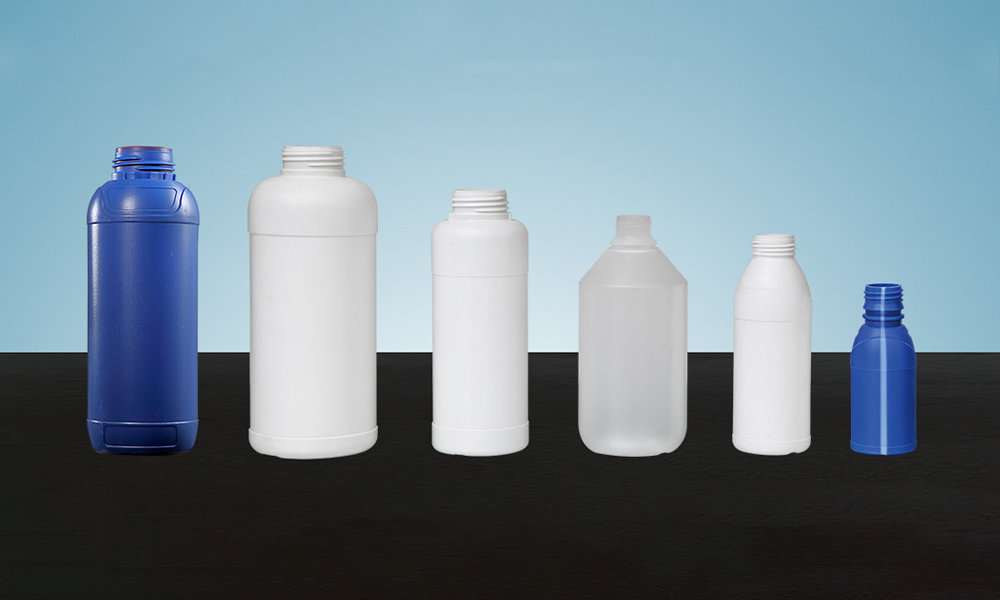

100ml Deco 2-Layer Pesticide Bottle Blow Molding Machine is purpose-built for producing high-barrier, precision-formed agrochemical bottles. Designed with versatility and efficiency in mind, this blow molding machine is the ideal solution for manufacturing 100ml to 1L pesticide bottles commonly used in agricultural and chemical industries.The machine can produce up to 3600 bottles per hour, each with a net weight of 20±0.5g. The Deco 2-layer co-extrusion system ensures bottles have a strong outer layer for mechanical strength and a specialized barrier inner layer to protect contents from light, oxygen, and moisture. This multi-layer structure is critical for maintaining the effectiveness and shelf life of sensitive pesticide and agrochemical formulations.
Bestar Machinery supports customization up to CoEx 6 layers, allowing for enhanced barrier performance based on client requirements. Whether you need bottles in 100ml, 250ml, 500ml, or 1-liter sizes, this blow molding machine offers flexible mold configuration options to adapt to varying product lines.

Get A Quote

Technical Parameters

2-Layer Pesticide Bottle Blow Molding Machine
Bestar offers blow molding machine for 100ml pesticide bottles . Equipment for series blow molding machines comprises agricultural and chemical pesticide bottle blow molders.
8 cavities,double stations. cycle time 16seconds. output 3600 pcs/hour, Bottle net weight 20±0.5g.

Technical specifications

Article	100ml pesticide bottle
Cavities Per Mould	8cavities
Layers	2layer
Double/Single Stations	Double Stations
Net Weight	20±0.5g
Cycle Time	16 seconds
Article Output	3600 pcs/hour
Machine Type	B15D-750

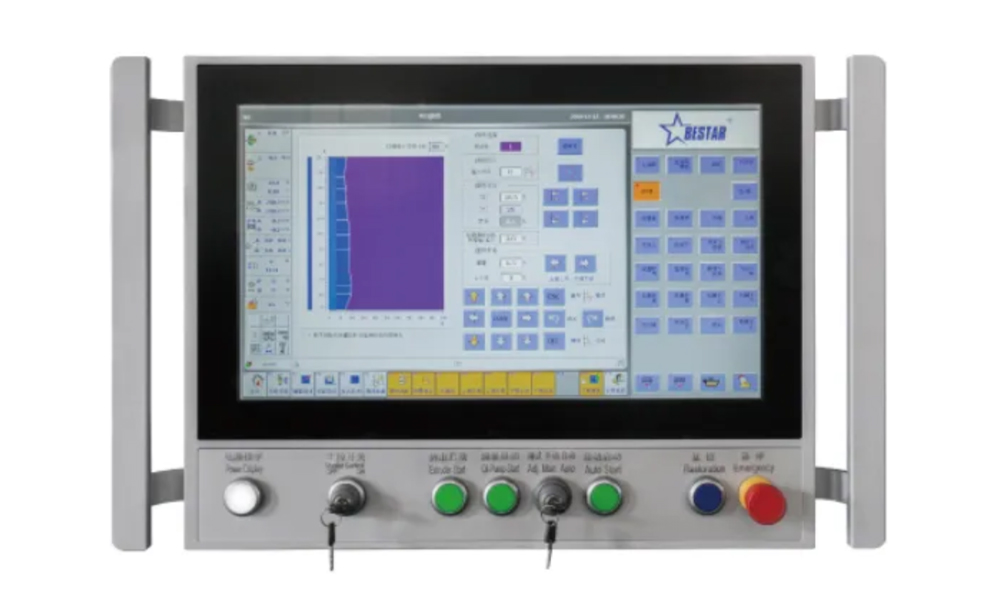

CONTROL SYSTEM

Austria B&R newest control system with an Intel Atom 1.46G.
Low-power 64-bit processor, integrated control, a direct display of the machine's operating characteristics, and an adjustable panel. Direct displays of the operating screen, automatic alert, and automatic problem diagnostics.
18.5-inch touchscreen display featuring an interface that is easier to use. Integrated 100-point(max 500points) axial wall thickness control to precisely regulate the product's wall thickness and reduce the cost for raw materials.
A programmable timer to regulate the heating and lower the temperature for an overnight shutdown.
Data reading and writing are made easier with an external USB.
Ethernet connection Remote diagnostics, remote service access, and accurate error parameters.
Adaptable upgrade choices.

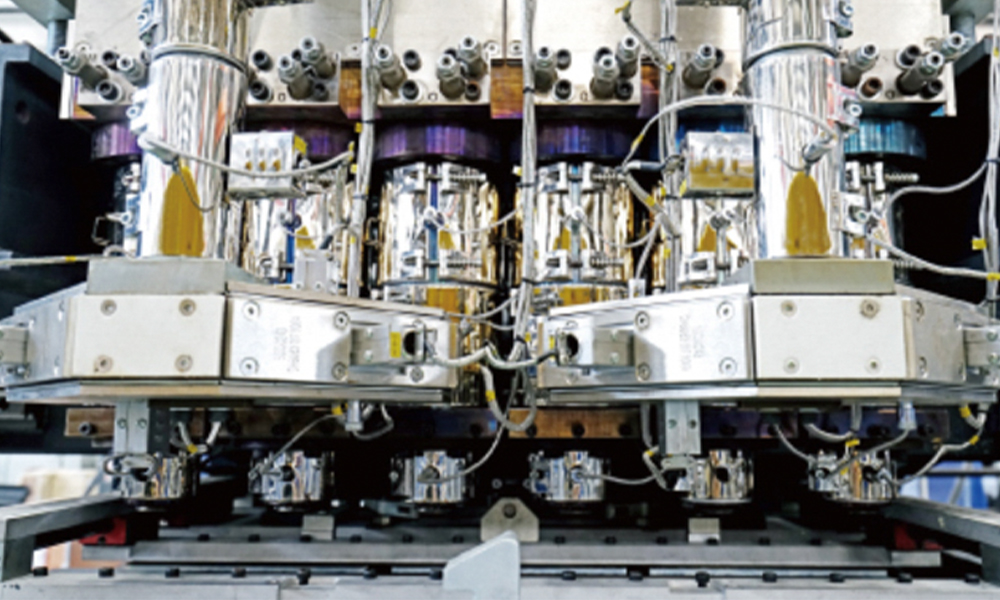

Die head

Cavities ReCo 3-layer Extrusion Head.
Precise ,accurate and streamlined die head design.Without blind angles and with faster color change.
Lower back pressure .Longer service life of extruder unit and gear box.
Multi-cavity flow channel with simple flow control0
Multi-layer co-extrusion head with spiral mandrel or heart curve0
Die head single layer with offset spider.
View stripes based on your request.
