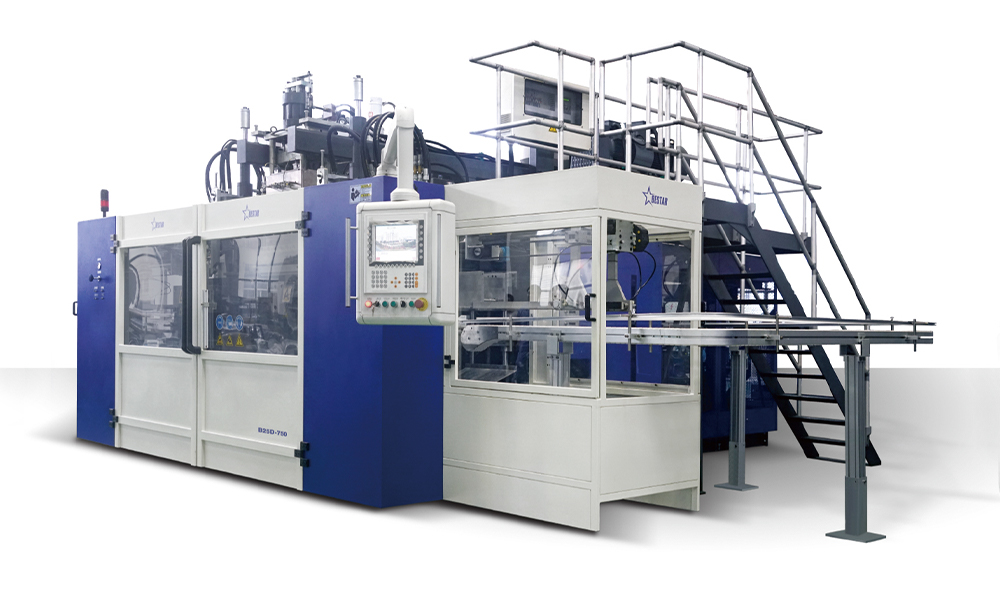

12 Liters ReCo 3-layer Dialysate Barrel Blow Moulding Machine

10L, 12L, Barrel, Dialysate, Medical canister, Blow moulding machine, Extrusion blow moulding machine, Blow molder

12 Liters ReCo 3-Layer Dialysate Barrel Blow Moulding Machine designed with strict hygiene standards in mind, this machine delivers precision, consistency, and safety, ensuring compliance with demanding medical packaging requirements. With a cycle time of 36 seconds, it achieves an output of 400 pieces per hour, ideal for high-quality batch manufacturing. Each barrel has a net weight of 530±5 grams, ensuring excellent structural integrity and load-bearing capacity during transportation and storage.While this machine is currently configured for single-layer production, Bestar provides optional ReCo multi-layer configurations, including 3-layer co-extrusion, upon request. Multi-layer capabilities offer enhanced barrier properties, chemical resistance, and the ability to include recycled materials in the core layer without affecting the performance of the product-contacting surfaces—perfect for medical and pharmaceutical packaging that demands safety and environmental responsibility.Bestar Machinery uses advanced European blow molding technology to offer highly efficient, energy-saving, and stable machines. This blow molding system includes features such as automatic parison control, servo-driven movement, and a modular mold system, making it easy to adjust for different container sizes from 10L to 12L, or even beyond, as per your custom requirements.

Get A Quote

Technical Parameters

Dialysate Barrel Blow Moulding Machine
12Liters dialysate barrel .2cavities double stations.Barrels can be made based on your requirement.Bestar provide equipment for medical bottles with multi-layers and multi-cavities.
2 cavities,double stations. cycle time 36seconds. output 400 pcs/hour, Bottle net weight 530±5g.

Technical specifications

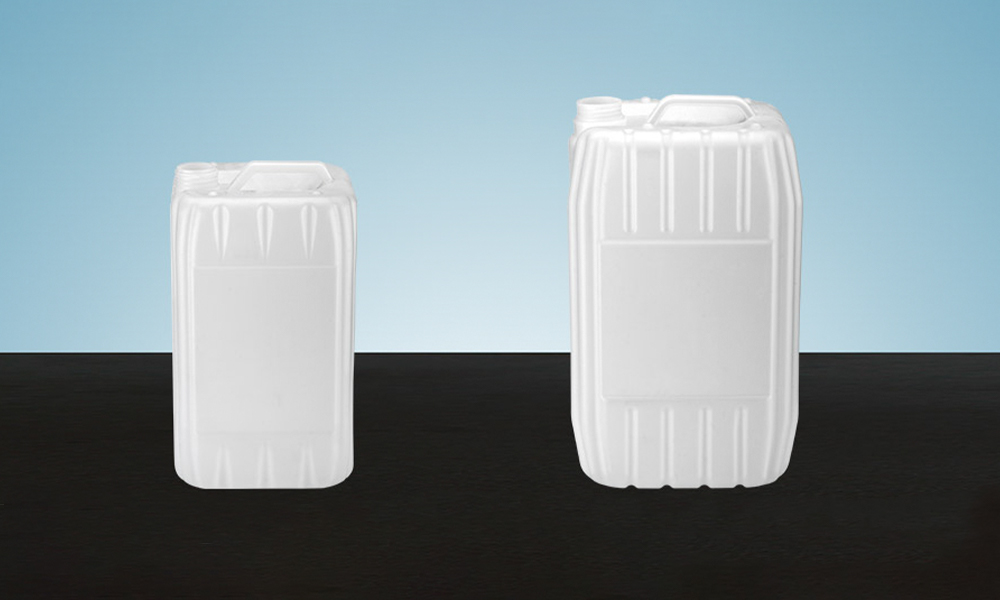

Article	12L Stackable Container
Cavities Per Mould	2 cavities
layers	1layer
Double/Single Stations	Double Stations
Net Weight	530±5g
Cycle Time	36 seconds
Article Output	400 pcs/hour
Machine Type	B25D-750

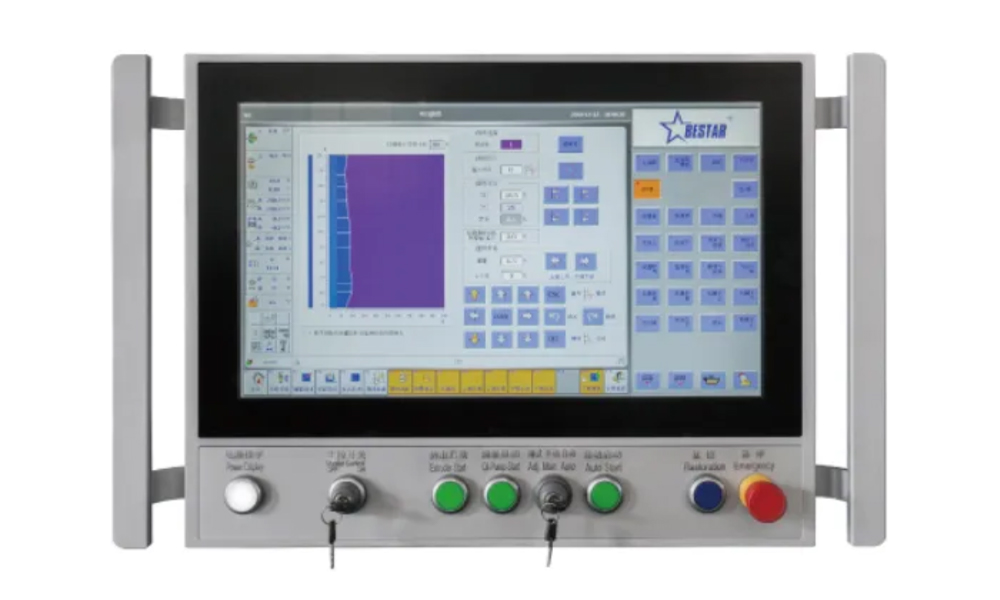

CONTROL SYSTEM

Austria B&R newest control system with an Intel Atom 1.46G
Low-power 64-bit processor, integrated control, a direct display of the machine's operating characteristics, and an adjustable panel. Direct displays of the operating screen, automatic alert, and automatic problem diagnostics
18.5-inch touchscreen display featuring an interface that is easier to use. Integrated 100-point(max 500points) axial wall thickness control to precisely regulate the product's wall thickness and reduce the cost for raw materials.
A programmable timer to regulate the heating and lower the temperature for an overnight shutdown.
Data reading and writing are made easier with an external USB.
Ethernet connection Remote diagnostics, remote service access, and accurate error parameters.
Adaptable upgrade choices.

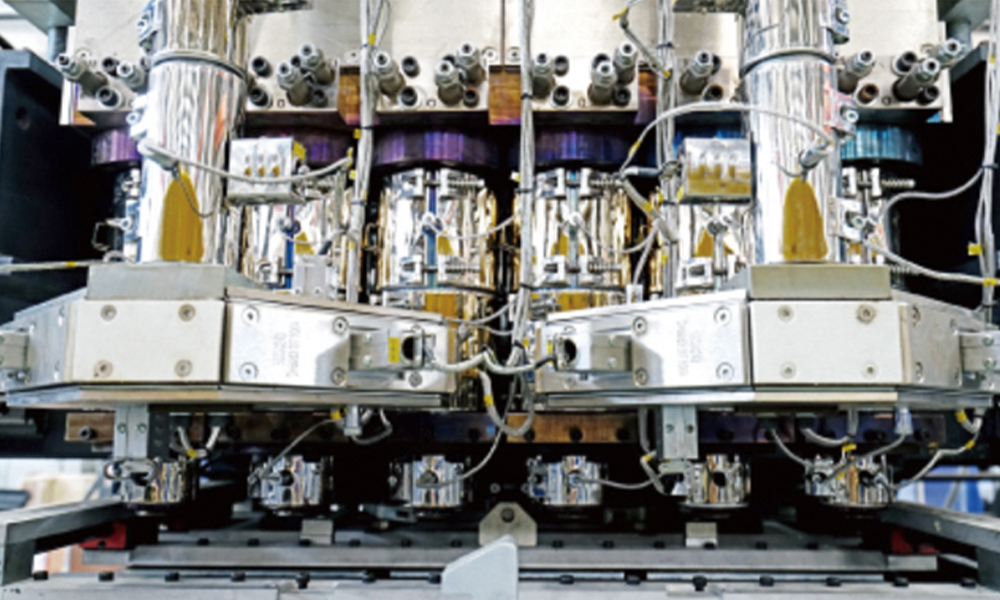

Die head

Cavities ReCo 3-layer Extrusion Head.
Precise ,accurate and streamlined die head design.Without blind angles and with faster color change.
Lower back pressure .Longer service life of extruder unit and gear box.
Multi-cavity flow channel with simple flow control.
Multi-layer co-extrusion head with spiral mandrel or heart curve.
Die head single layer with offset spider
View stripes based on your request.
