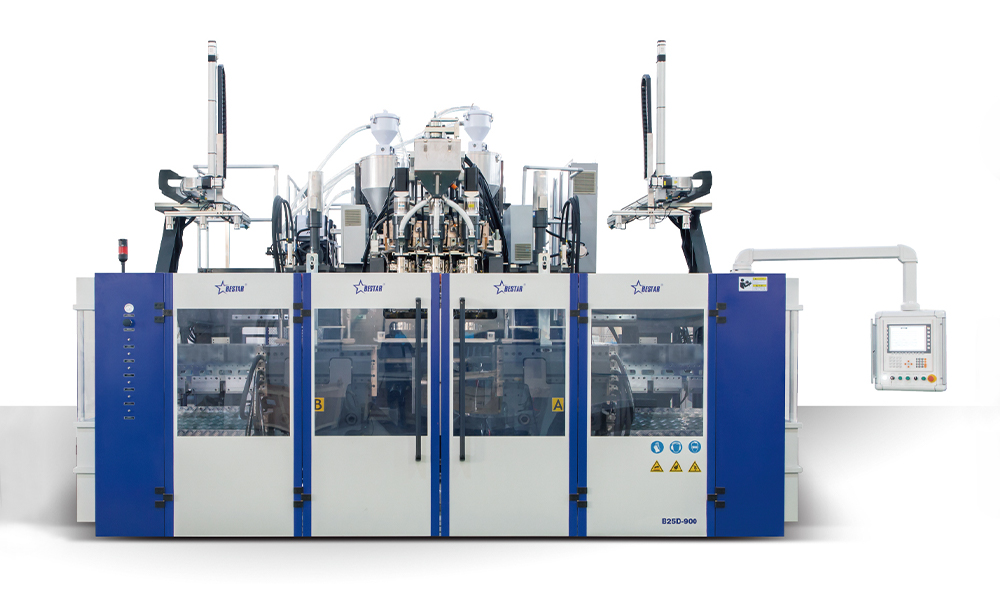

6 Liters ReCo 3-layer Dialysate Barrel Blow Molding Machine

Medicine Bottle  Blow Moulding Machine
6Liters dialysate barrel .3cavities double stations.Barrels can be made  based on your requirement.Bestar provide equipment for medical bottles with multi-layers and multi-cavities.
3 cavities,double stations. cycle time 32seconds. output 675 pcs/hour,  Bottle net weight  300±5g.

Technical specifications

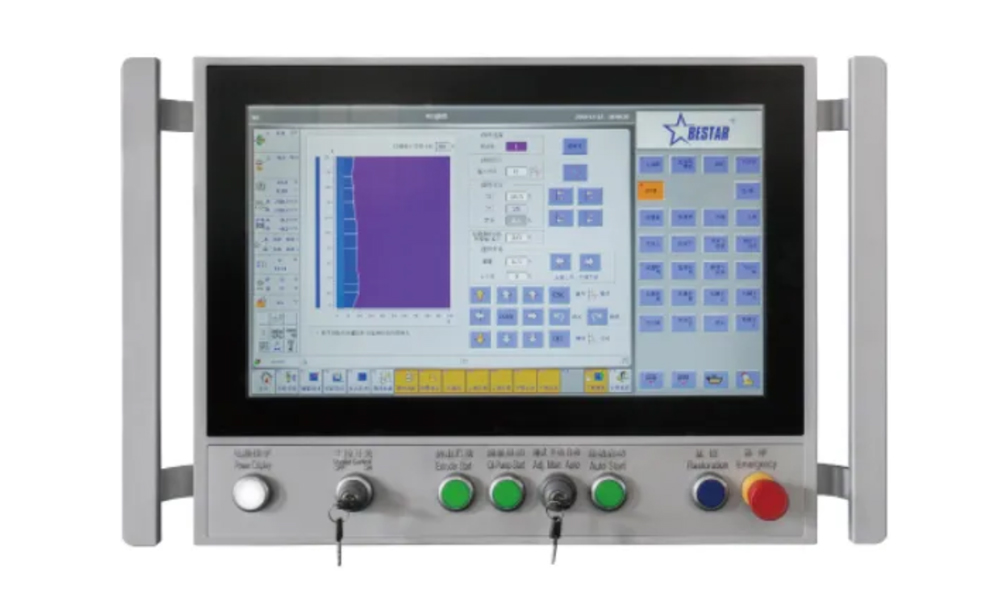

CONTROL SYSTEM

1. Austria B&R newest control system with an Intel Atom 1.46G.
2. Low-power 64-bit processor, integrated control, a direct display of the machine's operating characteristics, and an adjustable panel. Direct displays of the operating screen, automatic alert, and automatic problem diagnostics.
3. 18.5-inch touchscreen display featuring an interface that is easier to use. Integrated 100-point(max 500points) axial wall thickness control to precisely regulate the product's wall thickness and reduce the cost for raw materials.
4. A programmable timer to regulate the heating and lower the temperature for an overnight shutdown.
5. Data reading and writing are made easier with an external USB.
6. Ethernet connection Remote diagnostics, remote service access, and accurate error parameters.
7. Adaptable upgrade choices.

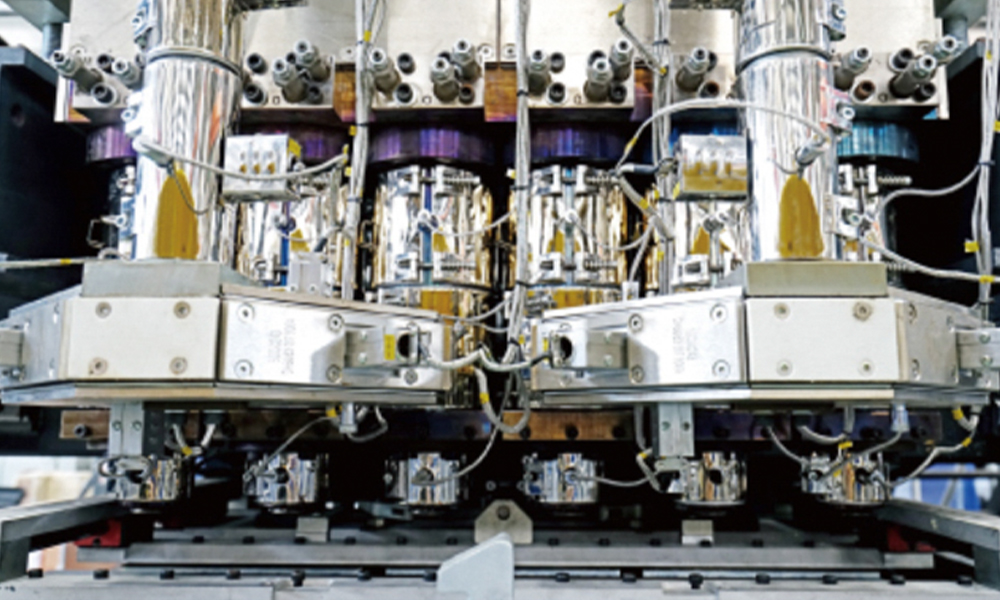

Die head

1. Cavities  ReCo 3-layer Extrusion Head.
2. Precise ,accurate and streamlined  die head design.Without blind angles and with faster color change.
3. Lower back pressure .Longer service life of the extruder unit and gear box.
4. Multi-cavity flow channel with simple flow control.
5. Multi-layer co-extrusion head with spiral mandrel or heart curve.
6. Die head single layer with offset spider.
7. View stripes based on your request.
