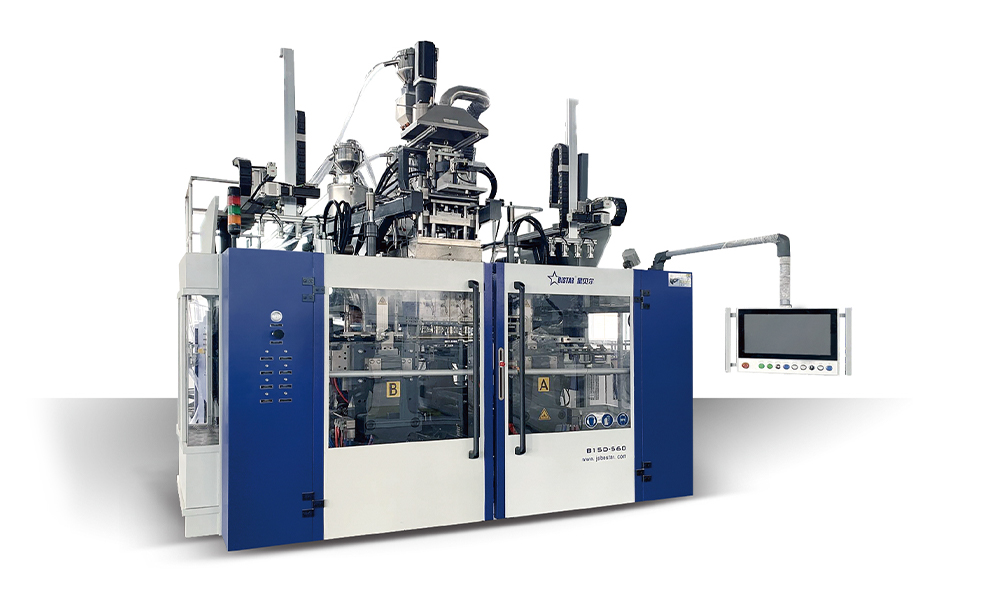

5 Liters 6-Layer Agrochemical Jerry Can Blow Molding Machine

1L, 5L, 1000ml, 5000ml, Coex, 3 layers, 4 layers, 6 layers, Agrochemical, Pesticide, COEX, Co-extrusion, Blow moulding machine, Extrusion blow moulding machine, Blow molder

Bestar Machinery proudly presents the 5 Liters 6-Layer Agrochemical Jerry Can Blow Molding Machine, a cutting-edge solution designed to meet the rigorous demands of the agrochemical and pesticide packaging industry. Utilizing advanced co-extrusion (COEX) technology, this machine delivers superior product protection by producing multi-layer jerry cans with exceptional barrier properties, ensuring chemical stability and product safety during storage and transportation.
This versatile blow molding machine supports 3-layer, 4-layer, and 6-layer constructions, allowing you to customize packaging based on specific requirements. The 6-layer technology integrates a specialized barrier layer that significantly improves resistance against oxygen, UV light, and chemical permeation, which is critical for agrochemical products such as pesticides and herbicides.
Although the above specifications are based on the 1-liter pesticide bottle, Bestar’s 5 liters jerry can blow molding machine can be fully customized to meet your production needs for larger volumes. This machine features double stations and multi-cavity molds to ensure high efficiency and increased throughput, making it ideal for medium to large-scale manufacturing.

Get A Quote

Technical Parameters

3-layers Or 4-layers Or 6layers Pesticide Bottle Blow Moulding Machine
Bestar 1-liter coex-4 pesticide bottle blow molding machine equipped with max 500 points Rexroth wall-thickness controller. Uniform wall-thickness of barrier layer can be 0.03~0.08mm to save your material cost.Machine can customized based on your requirement.
4 cavities,double stations. cycle time 40seconds. output 720 pcs/hour, Bottle net weight 120±3g

Technical specifications

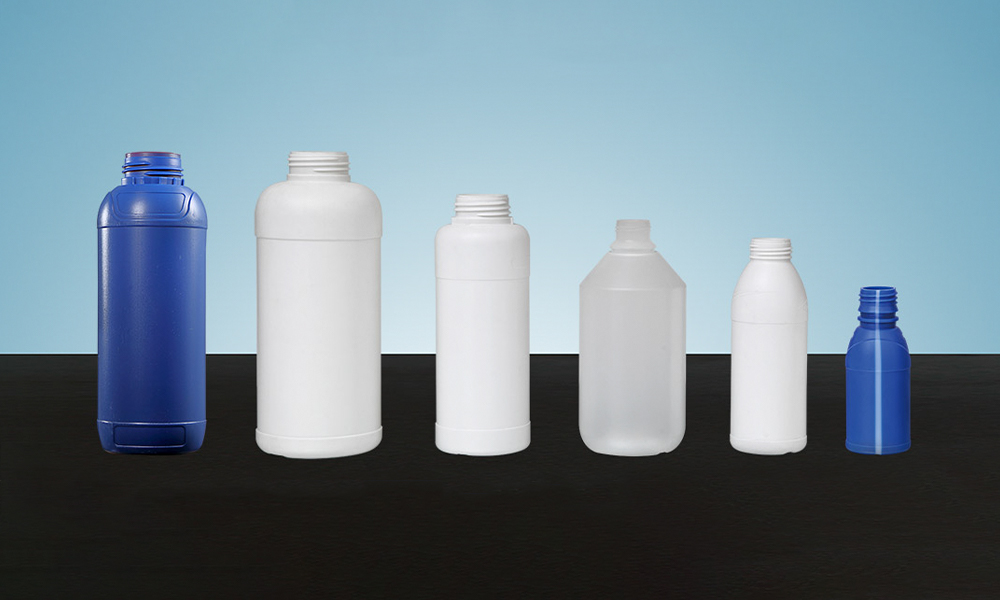

Article	1L pesticide bottle
Cavities Per Mould	4 cavities
Layers	4layer
Double/Single Stations	Double Stations
Net Weight	120±3g
Cycle Time	40 seconds
Article Output	720 pcs/hour
Machine Type	B15D-560

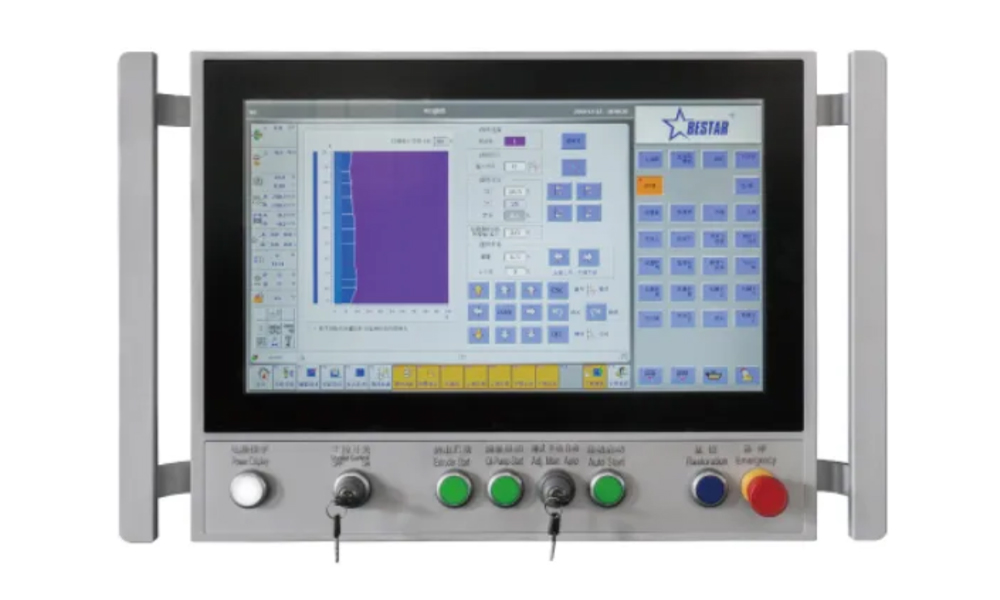

CONTROL SYSTEM

Austria B&R newest control system with an Intel Atom 1.46G.
Low-power 64-bit processor, integrated control, a direct display of the machine's operating characteristics, and an adjustable panel. Direct displays of the operating screen, automatic alert, and automatic problem diagnostics.
18.5-inch touchscreen display featuring an interface that is easier to use. Integrated 100-point(max 500points) axial wall thickness control to precisely regulate the product's wall thickness and reduce the cost for raw materials.
A programmable timer to regulate the heating and lower the temperature for an overnight shutdown.
Data reading and writing are made easier with an external USB.
Ethernet connection Remote diagnostics, remote service access, and accurate error parameters.
Adaptable upgrade choices.

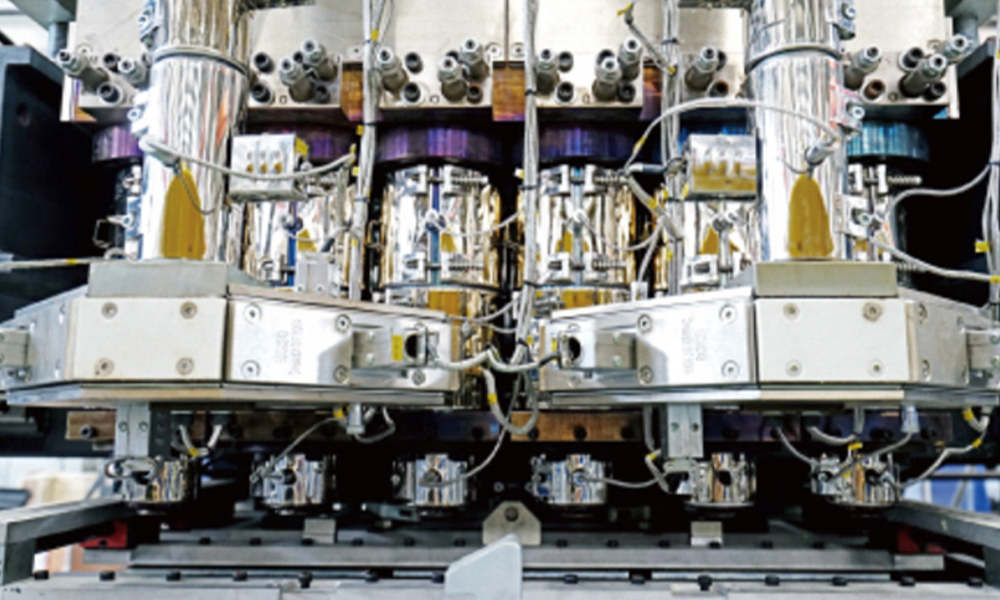

Die head

Cavities ReCo 3-layer Extrusion Head.
Precise, accurate and streamlined die head design.Without blind angles and with faster color change.
Lower back pressure .Longer service life of extruder unit and gear box.
Multi-cavity flow channel with simple flow control.
Multi-layer co-extrusion head with spiral mandrel or heart curve.
Die head single layer with offset spider.
View stripes based on your request.
